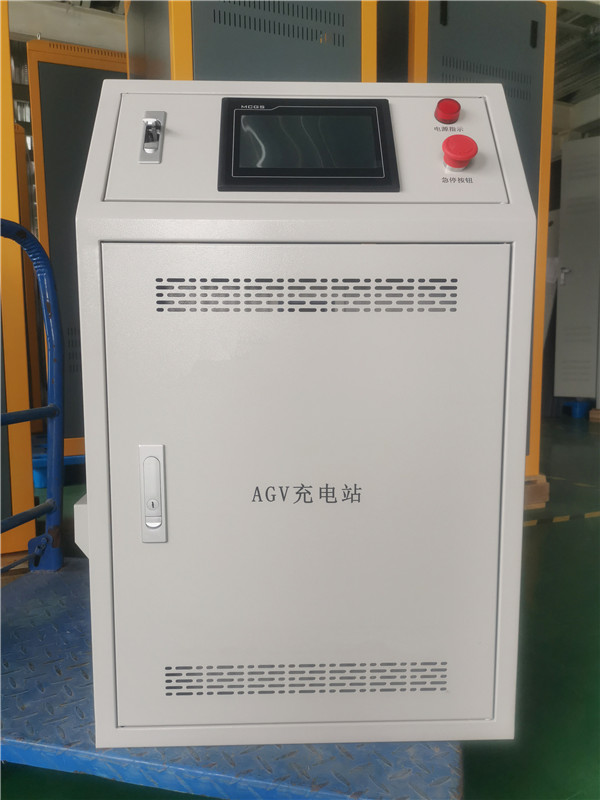

The AGV (RGV) Intelligent Charging Station is an intelligent charging device developed by our company based on the charging requirements for lithium iron phosphate battery packs used in intelligent robots.

This charging station uses a microcontroller as the main control unit and a 7-inch color LCD touchscreen as the human-machine interface; the main circuit employs a high-frequency switching power supply that is lightweight, compact, highly efficient, and offers high accuracy in voltage and current regulation. The entire system is easy to operate, reliable, fully protected, highly automated, and provides an automatic telescopic function.

It can achieve unattended automatic charging for AGVs, RGVs, electric forklifts, etc.

Main Features

Touchscreen or LCD display

Uses high-frequency switching power supply

Flexible dimensions

Offers a LAN control solution for centralized monitoring of the charging station

Automatic telescopic charging via the host computer

Technical Specifications

AC Input Voltage: AC220V ±10% or AC380V ±10% 50Hz

DC Output Voltage: DC 0-80V (customizable according to actual parameters)

DC Output Current: DC 0-300A (customizable according to actual parameters)

Ripple: ≤1%

Current Regulation Accuracy: ≤±1%

Voltage Regulation Accuracy: ≤±1%

Noise: ≤55dB (measured at 1 meter in front of and behind the door when closed)

Cooling Method: Air cooling

Dimensions: H 800mm × W 500mm × D 420mm

(Flexible dimensions; customizable according to on-site requirements)

Extension Length: Default 150mm (customizable according to actual parameters)

Charging Head Extension Height: Default 140mm (customizable according to actual parameters)

Communication: Provides multiple interfaces: RS485/232/CAN/TCPIP/dry contacts

For Customized Products, the Following Information is Required

Main specification sheet (customizable according to on-site requirements)
