Charge and discharge instrument test

Introduction：　　The THC(F)-20 series intelligent battery charge/discharge integrated machine is specifically designed for deep charge/discharge of battery packs, capacity testing, and daily maintenance of battery packs. The entire machine is controlled by a microprocessor, with a large LCD screen and Chinese menu. The design is novel, compact, lightweight, and easy to move. Once all charge/discharge parameters are set, the entire charge/discharge process is automatically completed, fully realizing intelligence. It is also equipped with comprehensive data processing software.　　*Main Features and Functions:Microcomputer ControlLCD display, Chinese menu, real-time display of various detection data (charge/discharge current, battery pack voltage, charge/discharge duration, charge/discharge capacity, start time, temperature, etc.), allowing users to understand the device's operating status at any time.Keyboard OperationSet various charge/discharge parameters and machine operation instructions through the keyboard.Computer OperationSet, retrieve, and download various charge/discharge parameters and machine operation instructions through a laptop or computer.Automatic ProtectionAutomatically stops charging/discharging and alarms when the charge/discharge time is up, charge/discharge capacity is reached, battery pack voltage is lower or higher than the set protection voltage, internal temperature is too high, or load connection abnormalities occur. The shutdown method is also automatically recorded.Power-off FunctionIn the event of an unexpected power outage during charging/discharging, the set charge/discharge parameters and data collected during the charge/discharge process are automatically saved. Once power is restored, the machine continues to work automatically. All charge/discharge data is continuously stored without causing damage to the equipment.Data CollectionData can be collected and stored at a relatively fast frequency (data collection interval can be set between 6 seconds and 600 seconds), facilitating the analysis of battery pack performance.Data ProcessingAll detected data can be uploaded to a computer via a 232 communication port or USB drive. Specialized software (provided with the machine) processes the data to generate various intuitive curves, graphics, reports, etc., reflecting the performance of the battery pack. These can be printed or queried.Correction FunctionThe displayed voltage and current values can be corrected (calibrated) either before or during discharging.Charging PrincipleAfter parameter setting, the charging process is automatically completed, fully adhering to the three-stage process: constant current --- constant voltage --- trickle floating charge.

After-sales service：Establishing a complete quality assurance system and after-sales service management system can ensure the safe use of users.(Click here for details)

Consult

186-3733-3097

Introduction

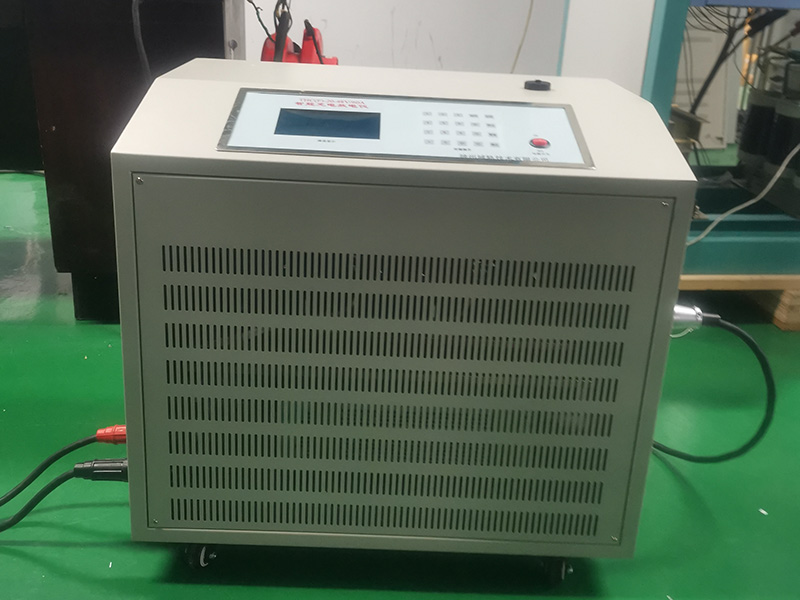

　　The THC(F)-20 series intelligent battery charge/discharge integrated machine is specifically designed for deep charge/discharge of battery packs, capacity testing, and daily maintenance of battery packs. The entire machine is controlled by a microprocessor, with a large LCD screen and Chinese menu. The design is novel, compact, lightweight, and easy to move. Once all charge/discharge parameters are set, the entire charge/discharge process is automatically completed, fully realizing intelligence. It is also equipped with comprehensive data processing software.

　　*Main Features and Functions:

Microcomputer Control		LCD display, Chinese menu, real-time display of various detection data (charge/discharge current, battery pack voltage, charge/discharge duration, charge/discharge capacity, start time, temperature, etc.), allowing users to understand the device's operating status at any time.
Keyboard Operation		Set various charge/discharge parameters and machine operation instructions through the keyboard.
Computer Operation		Set, retrieve, and download various charge/discharge parameters and machine operation instructions through a laptop or computer.
Automatic Protection		Automatically stops charging/discharging and alarms when the charge/discharge time is up, charge/discharge capacity is reached, battery pack voltage is lower or higher than the set protection voltage, internal temperature is too high, or load connection abnormalities occur. The shutdown method is also automatically recorded.
Power-off Function		In the event of an unexpected power outage during charging/discharging, the set charge/discharge parameters and data collected during the charge/discharge process are automatically saved. Once power is restored, the machine continues to work automatically. All charge/discharge data is continuously stored without causing damage to the equipment.
Data Collection		Data can be collected and stored at a relatively fast frequency (data collection interval can be set between 6 seconds and 600 seconds), facilitating the analysis of battery pack performance.
Data Processing		All detected data can be uploaded to a computer via a 232 communication port or USB drive. Specialized software (provided with the machine) processes the data to generate various intuitive curves, graphics, reports, etc., reflecting the performance of the battery pack. These can be printed or queried.
Correction Function		The displayed voltage and current values can be corrected (calibrated) either before or during discharging.
Charging Principle		After parameter setting, the charging process is automatically completed, fully adhering to the three-stage process: constant current --- constant voltage --- trickle floating charge.
